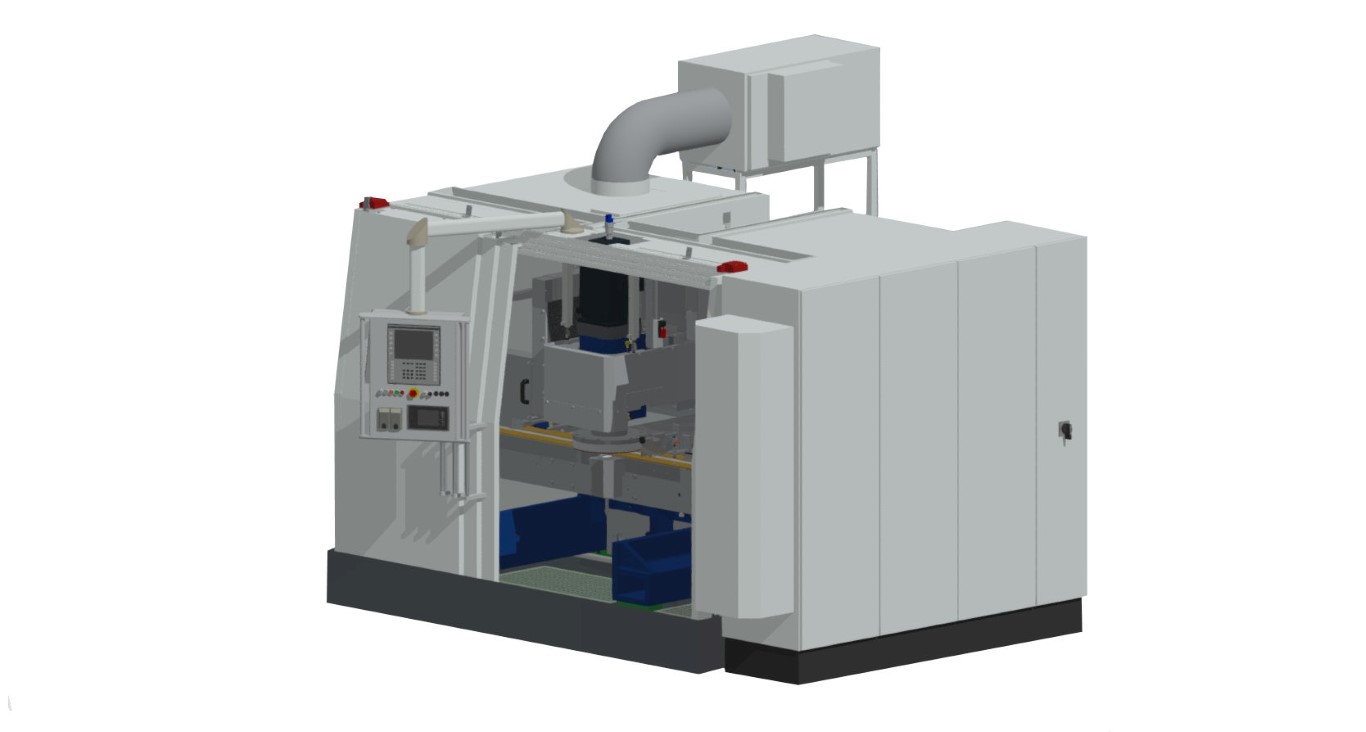

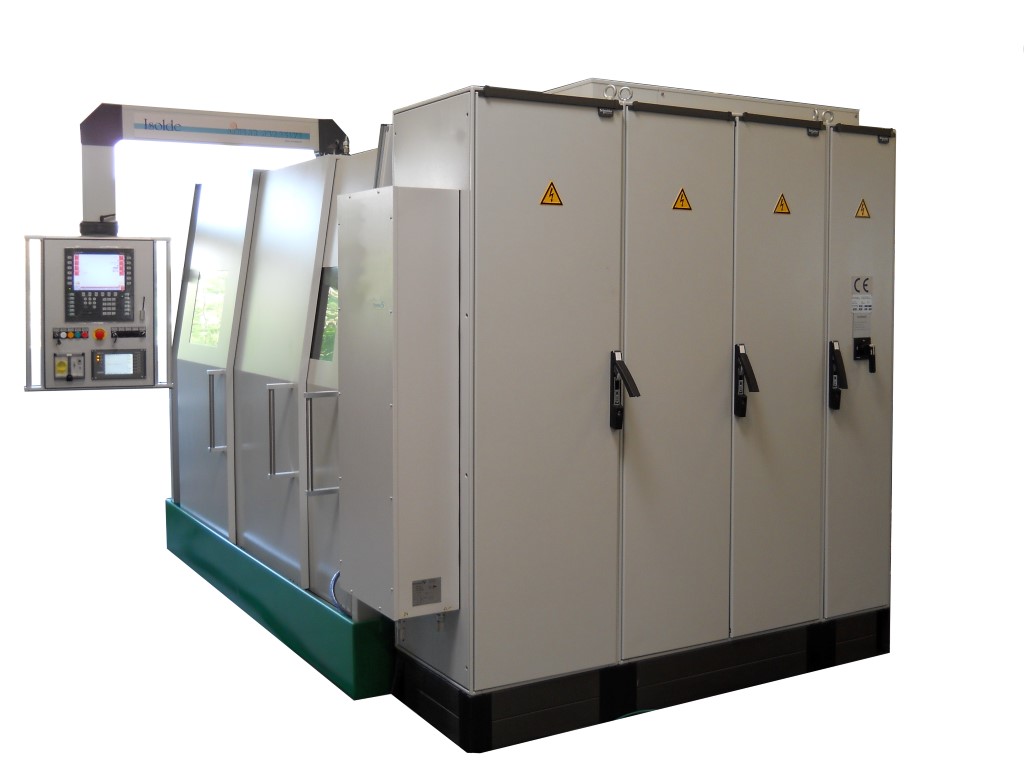

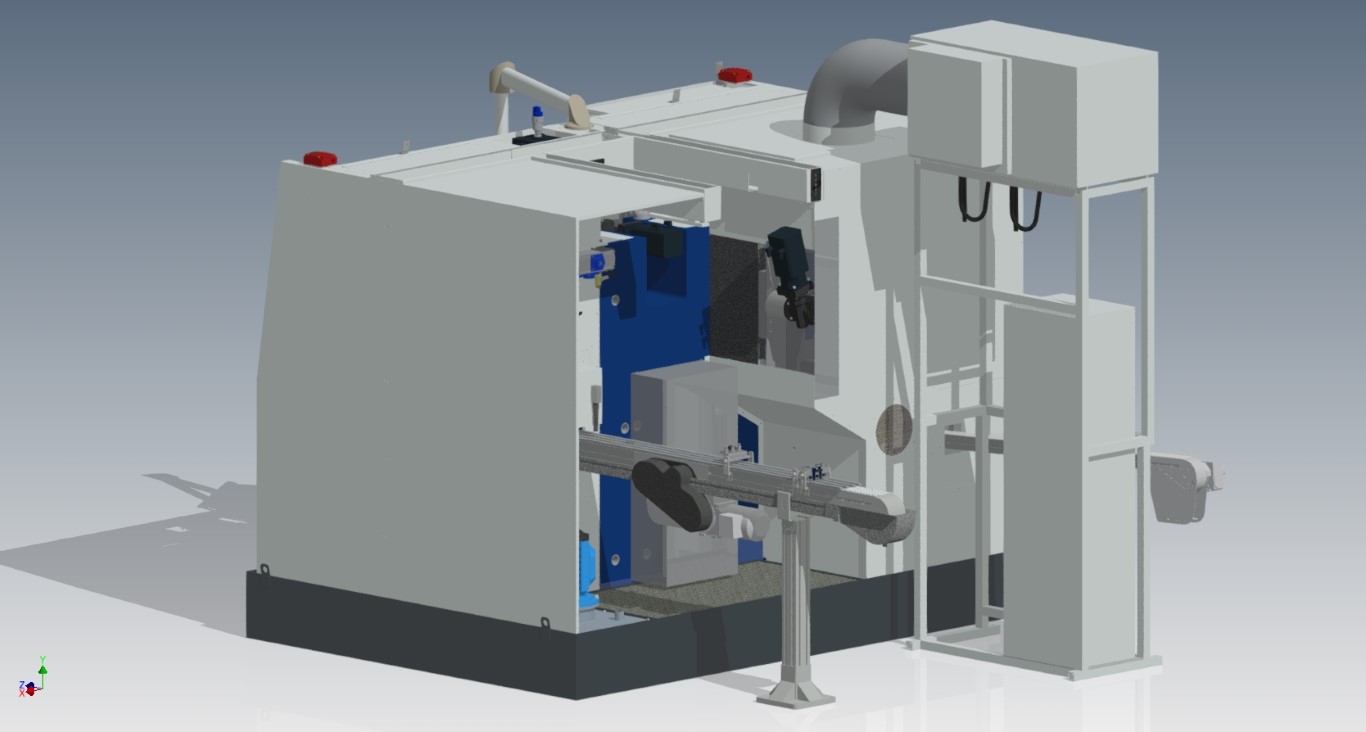

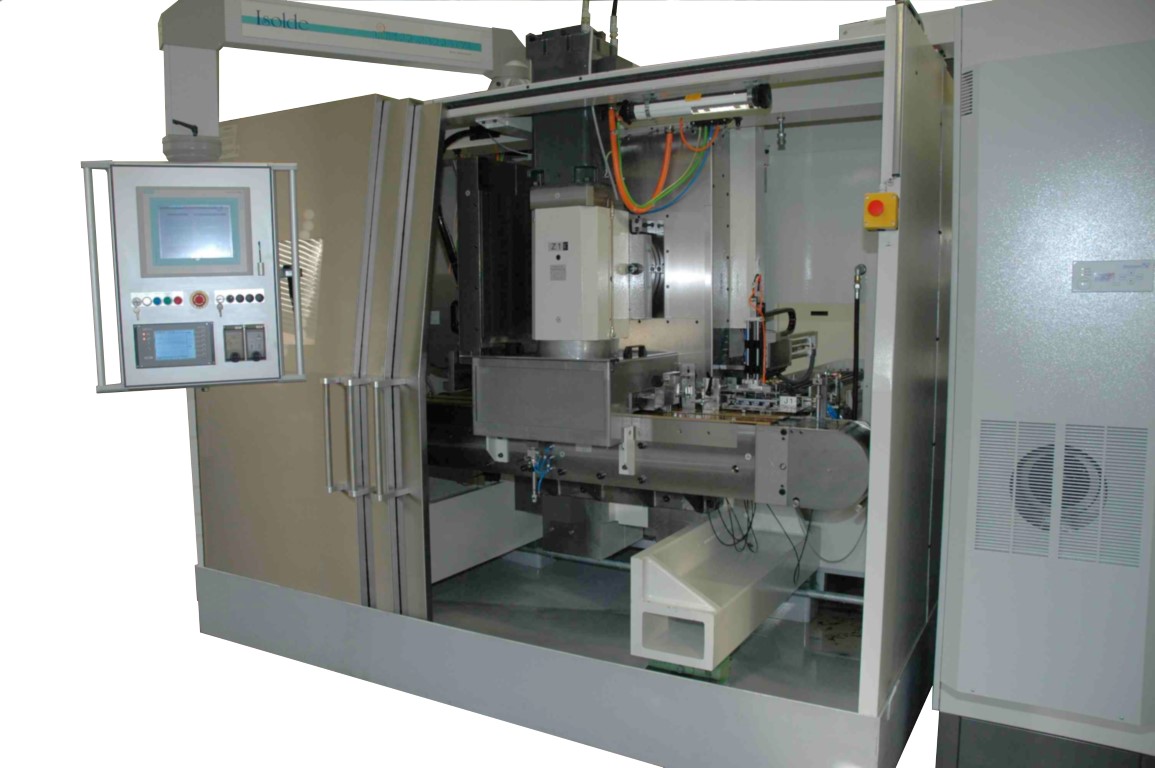

ISOLDE 500/500

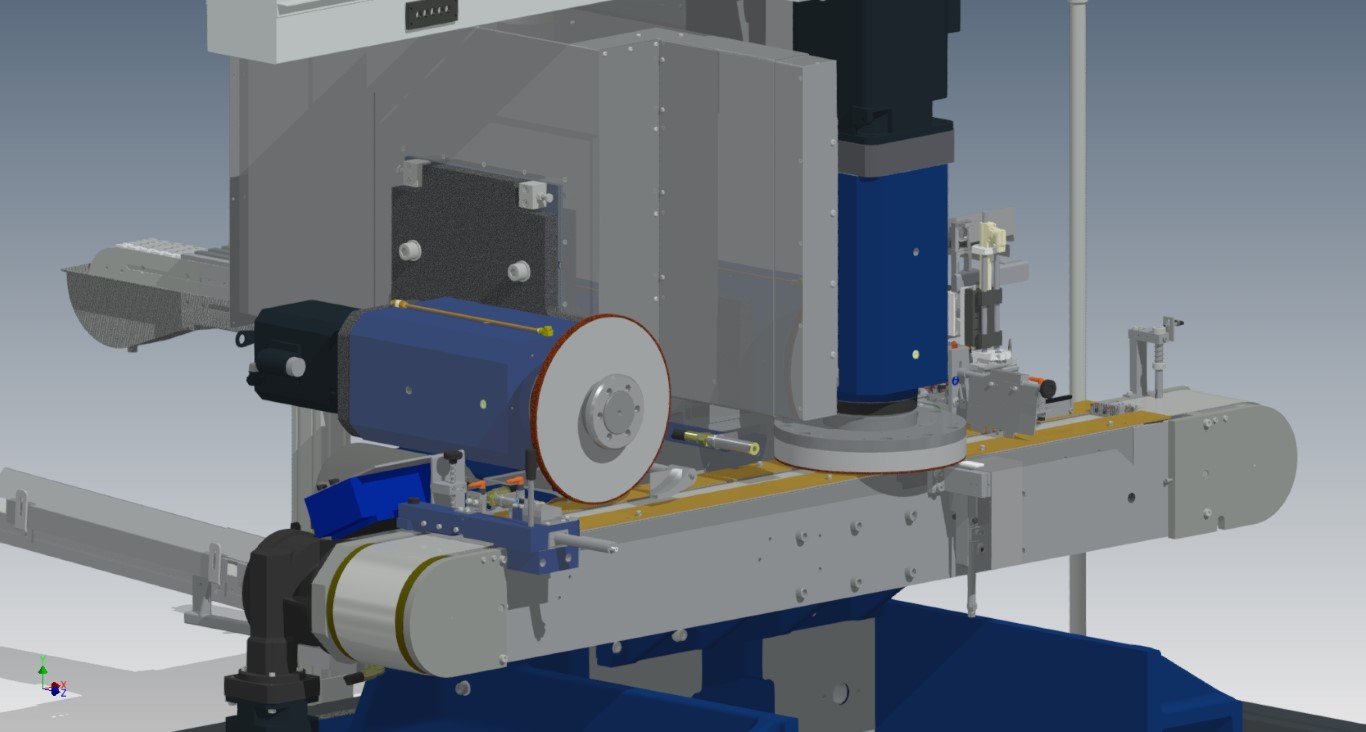

Continuous through feed grinder equipped with 1 vertical spindle and 1 horizontal spindle
Performances
Resolution 0.001 mm
High performance spindles, direct drive
Modular rigid frame of grey cast iron combined with prestressed reinforced concrete
Measurement and automatic servo
Additional brushing module
Automatic, semi-automatic or manual loading
Technical specifications
|
Number of spindles Spindle Z-axis Rotation speed Power Width max. Height max. Abrasive tools Grinding wheel Infeed Electrical control Total weight Stock removal Resolution |
2 ø200×500 mm 120 mm 0-4000 rpm 2x 28 kW 180 mm 100 mm CBN/diamond/Al2O3 ø500 mm 0-6000 mm/min Siemens S7/1500/TIA 5-7 t 0-5 mm 0.001 mm |
