STAG 300/600

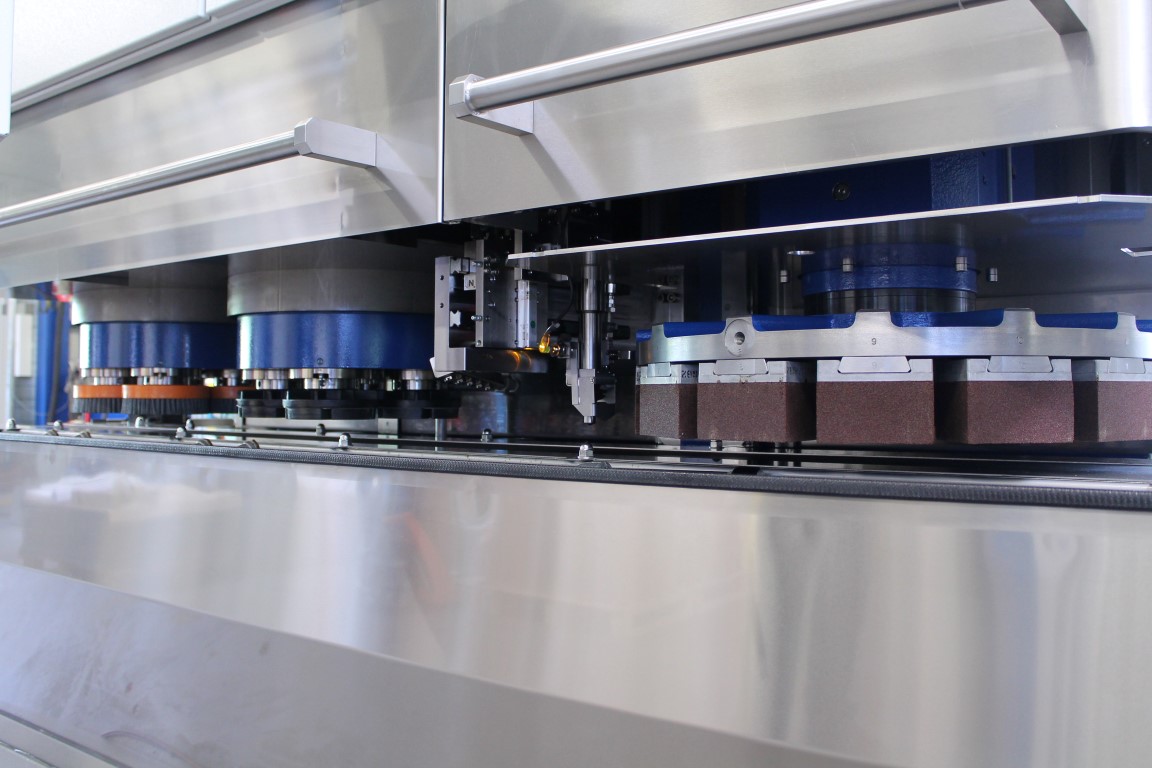

Continuous through feed grinder, can be combined with up to 3 vertical stations
Performances
Resolution 0.001 mm
High performance spindles, direct drive
Modular rigid steel frame combined with prestressed concrete
Measurement and automatic servo

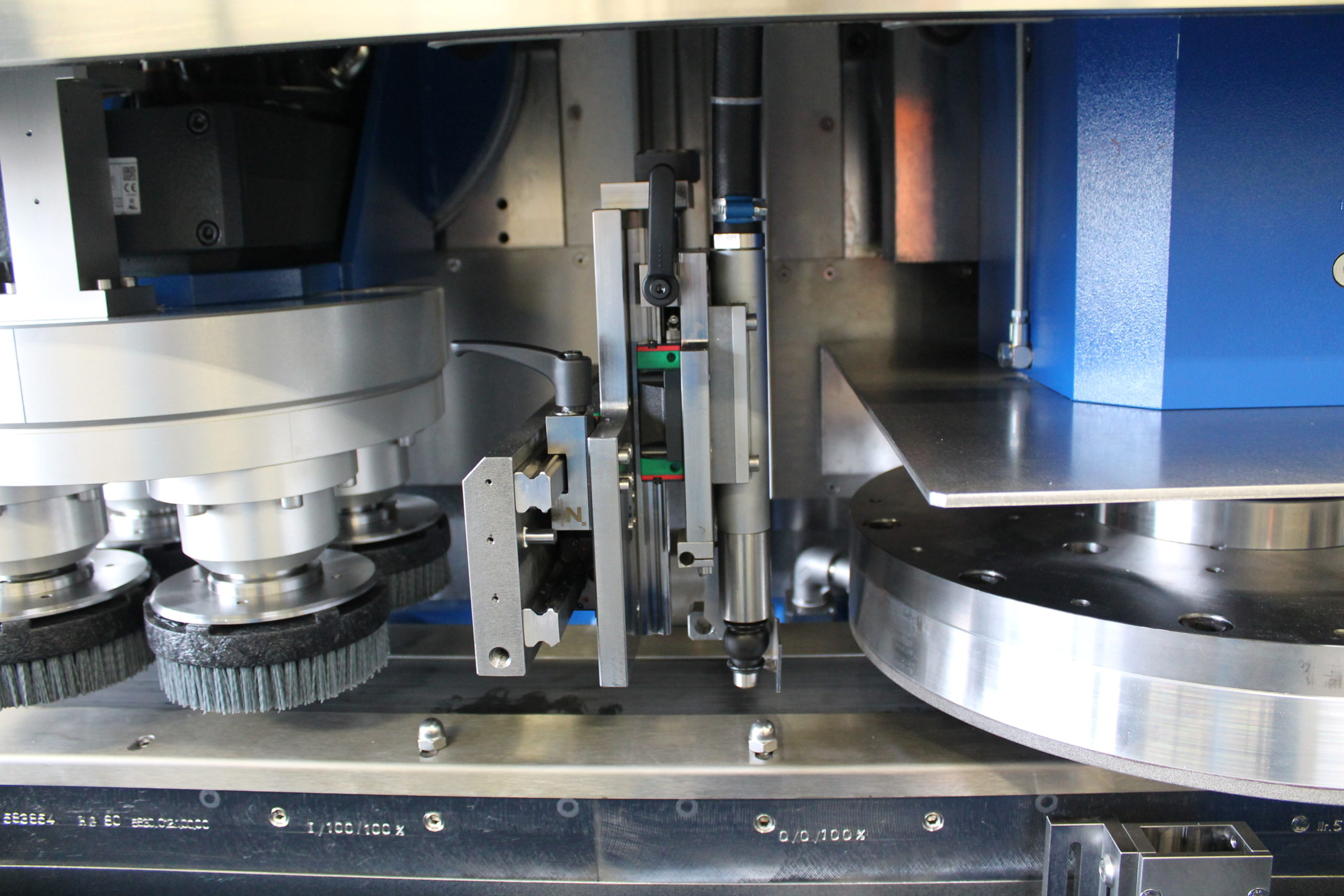

Additional brushing and/or polishing module
Can be combined with up to 3 stations continuously
Automatic, semi-automatic or manual loading
Technical specifications
|
Number of spindles Spindle Z-axis Rotation speed Power Width max. Height max. Abrasive tools Grinding wheel Infeed Electrical control Total weight Stock removal Resolution |
1+1 brushing ø200×500 mm 150 mm 0-3000 rpm 39/2.5 (brushing) kW 285 mm 120 mm CBN/diamond/Al2O3 ø500/ø600 mm 0-6000 mm/min Siemens S7/1500/TIA 5-7 t 8 mm 0.001 mm |
